《 特點與功能 》
- Basket全部SUS不銹鋼及鑄鋼製，全部焊接及SUS鉚釘，構造精度高，脫水效率高，能力大，是為底部排出型。
- PLC程式液晶螢幕全自動LCD顯示器監督控制，全中文圖控操作軟體易學易懂，可將處理程式輸入連續全自動運轉，袛開始時按下起動鈕，即可全自動連續運轉或手動及一行程操作。
- 處理程序更容易，隨時可輸入修改操作（例：脫液、水洗、分離時間可任意修改，無需更換任何配件）。
- 可自動操作、手動操作（自動/手動切換），異常顯示螢幕，操作流程可隨時於掌握中，緊急停止/剎車。
- 本機型無離合器油之消耗，無剎車帶之損耗，無粉塵，無皮帶輪傳動，及三角皮帶之損耗並可減少靜電發生。
- RPM在一定範圍內，可設定Free（低、中、高速由60-950任意設定控制）採精密氣壓調壓閥及氣壓定位器配套控制。(可選擇防爆型與非防爆型)
- 驅動油壓系統採用進口油壓原件配合。
- 經由低速（減速裝置）而帶動內籃（迴轉籠），刮料器採用齒輪比例及油壓缸作動傳送，即可手動/自動操作刮料器，逐漸將分離物由底部排出，刮料器並可自由調整上、下及厚、薄度，刮刀以SUS不銹鋼板製造，保證經久耐用。
- 機體具有液位、溫度、振動及馬達過電流保護裝置，故障情形都顯示於螢幕上，操作者可輕易排除障礙。
《 Features and Function 》

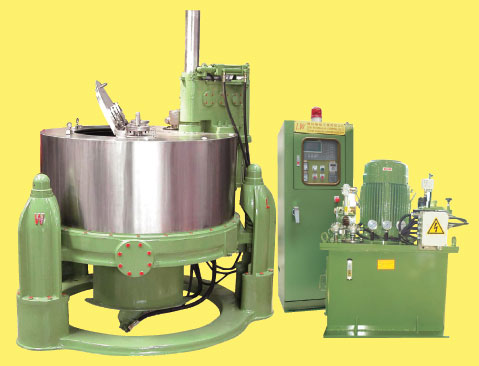

- The basket of the separator is made of stainless steel and case steel SUS and is completely constructed by welding process and stainless rivet with the highest precision and lowest amount of base cake that provide a bottom-discharge type separator of superior dehydration efficiency and high production capacity.
- The PLC software program enables a fully automatic control of the system through monitor. A fully automatic and continuous operation can be achieved by installing a processing software into the system. To select the mode of continuous automatic-operation or manual operation or one-stroke operation you just need to push the Start Button once. K.
- The processing procedure can be easily changed by altering the software program(for example; liquid extraction, water rinse. Setting desired duration of separation mode and varying the duration of separation at any time whenever required without need of replacing any machine part).
- Can select automatic operation or manual operation mode (switch-over between automatic and manual mode).Possesses the function of abnormal condition message display that enables the systems instantaneously by emergent brake in case of emergency.
- This type of separator causes no clutch-oil consumption, no wear and tear of brake belt, no dust pollution, no pulley-belt driving system. No BV-type belt consumption, and has the feature of reducing the occurrence of static electricity which may cause accident, W.
- The rotating speed can be freely set within the range from 60RPM to 950RPM. (Low speed, medium speed and high speed) Adopts the Precision Regulator and Cylinder Positioner Controlled.
- The hydraulic driving system adopts the high quality hydraulic control units and parts imported from foreign countries.W.

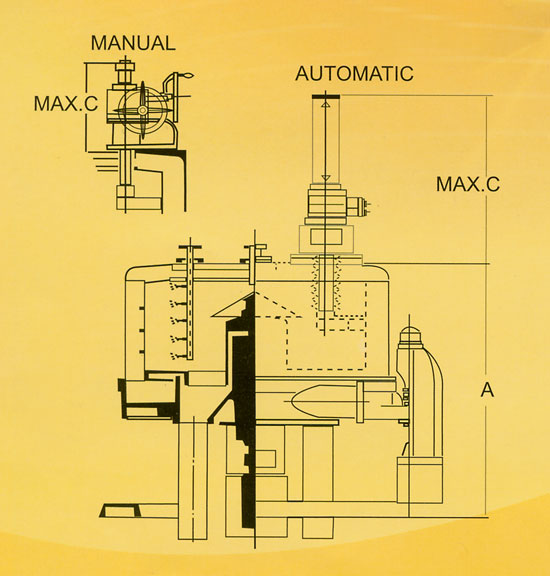

- When the inner drum (rotating basket) is driven through low speed system (speed Reduction system), a scraper can be operated manually/automatically to discharge the separated solids out of the separator from the bottom side. The position of the scraper can be adjusted vertically in up and down direction and radially with respect to the basket to adjust the thickness of the solids scraped off from the inner drum. The scraper is made of SUS stainless steel plate which is proved to be durable to stand wear and tear. T.
- The body is designed with the protection device forthe fluid, temperature, vibratility and over electric current. All troubles will be showed on the screen, so the user can eliminate the troubles easily.K.
|
